The Coal Gun S130 outdoor coal boiler is ideal for people who want to save time and money! It will have a positive return on investment in about five years. A hopper containing almost 2,000 lbs of coal and a completely automated feed and ash removal system means it requires little user attention.
This can provide you with a 30-day burn time, subject to usage! The S130 outdoor coal boiler uses Pennsylvania’s anthracite fuel. It will produce enough heat for a whole residence, including domestic hot water. The Coal Gun can achieve this for about 70% less cost than electric and nearly 50% less cost than traditional oil or gas systems.

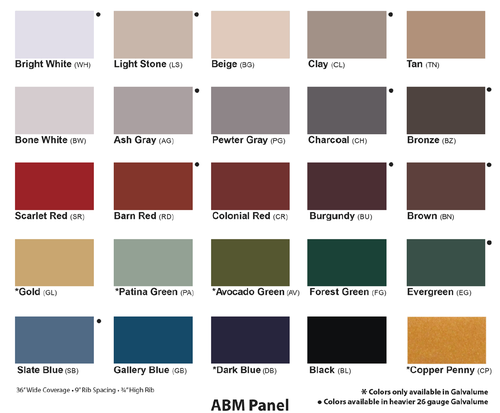

You can pick the outdoor housing color from various colors to complement the color of existing buildings. Call today for more information!
The S130 Outdoor Coal boiler is made from premium-quality materials by skilled, devoted experts. Each unit is fully tested and quality-checked before it leaves our factory to ensure it complies with our standards of quality.
Standard equipment includes an insulated boiler jacket, a totally enclosed motor and drive systems, two aquastats, Thermo Ash-Monitoring Control, and a pressure relief valve.
Our dedication to high standards has earned us a reputation for being one of the longest-lasting heating units. Some customers have reported +30 years of use and more. The S130 outdoor will save you time and money!
The Consumption of Fuel…
Many factors can affect the amount of fuel used, such as weather and building construction. Due to its efficiency, the Coal Gun will use less fuel than other units on the market. This will significantly lessen your yearly heating costs.
Limited Warranty
Alternate Heating Systems boilers and furnaces are guaranteed against damages in materials and workmanship for the given time:
- Boiler Vessel – 20 years
- Grate S130/S260 -Lifetime
A copy of the full guarantee text detailing coverage, limitations, warranty claim procedure, and state law rights is available.
- Smoke Free
- Outdoor Use
- Large Hopper
- Minimal Maintenance
- Cost Effective
- 83% Efficient
- Versatile Applications
- Lifetime Durability
BTU/hr
130,000
Typical Heating Capacity (sqft)
3,500
Weight (lbs)
1,200
Flue Size (in)
5
Fuel Type
Pea, Buckwheat Anthracite
Optional Backup Fuel
N/A
Hopper Capacity (lbs)
2,000
Approximate Water Capacity (gal)
27
Width (in)
60
Height (in)
92
Length (in)
92
Return Tapping (NPT) (in)
1-1/2
Supply Tapping (NPT) (in)
1-1/2
Electric Requirements
110V, 60Hz, 15Amp
Wood Siding
Our standard siding is ribbed sheet metal, we offer the “board and batten” look as an option.
Domestic Coil
This Domestic Coil features a 100° F rise at 5 gallons per minute, 50° water inlet temperature and 65 PSI water pressure. It is threaded into a 4 IN NPT threaded fitting provided on the boiler for this purpose.
ASME Certification
The ASME Certification guarantees the steel grade and weld quality of the boiler water jacket. Each ASME Certified water jacket has been pressure tested to 60 PSI, and includes a 30 PSI release valve. This certification is required for all commercial installations. The certification is also required for some residential installations depending upon local codes – it is up to the homeowner to determine the need for an ASME
certification on any boiler purchased.
Low Water Cutoff
Senses the water level in the vessel and shuts the unit down if the water level falls to an unsafe condition.
