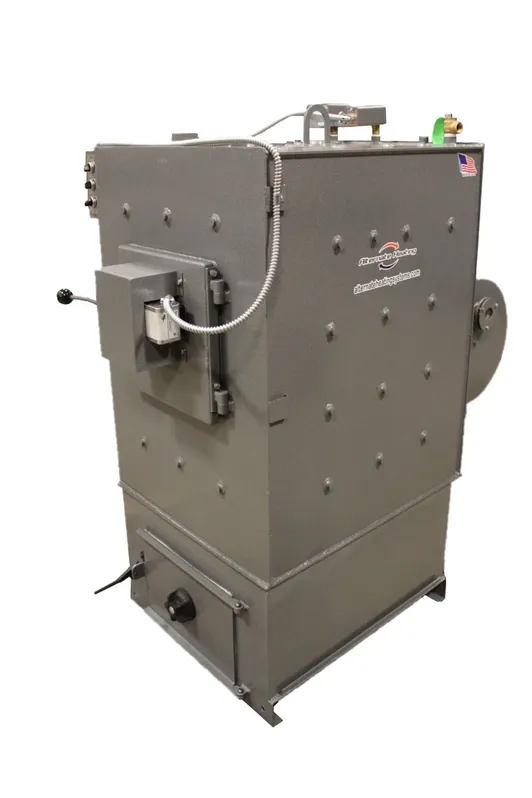

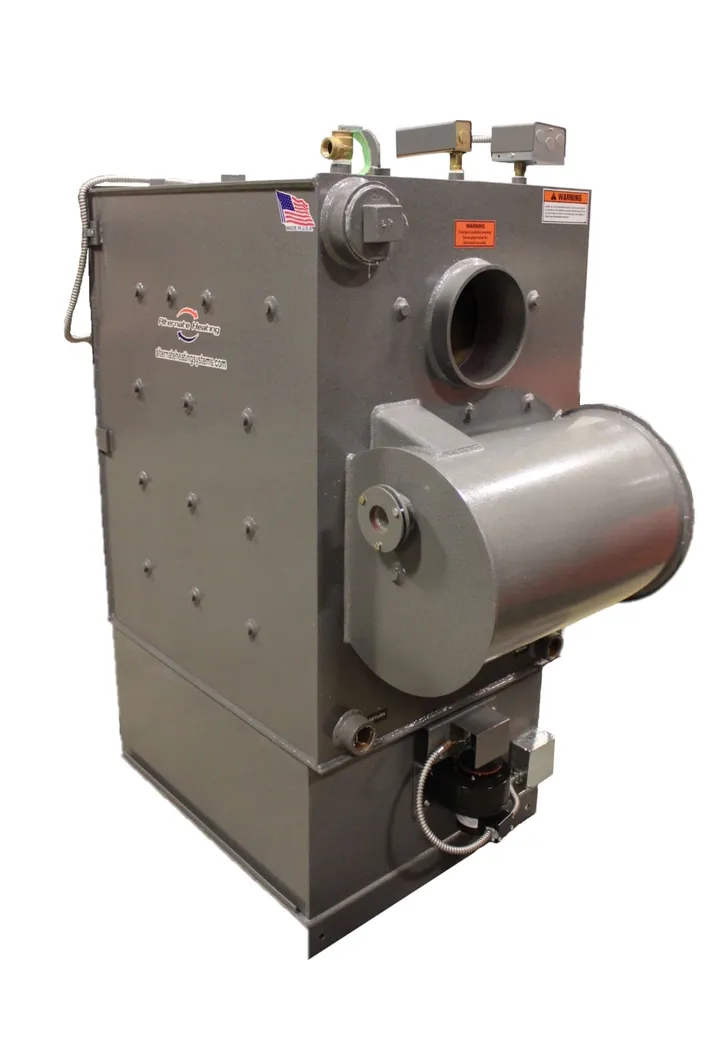

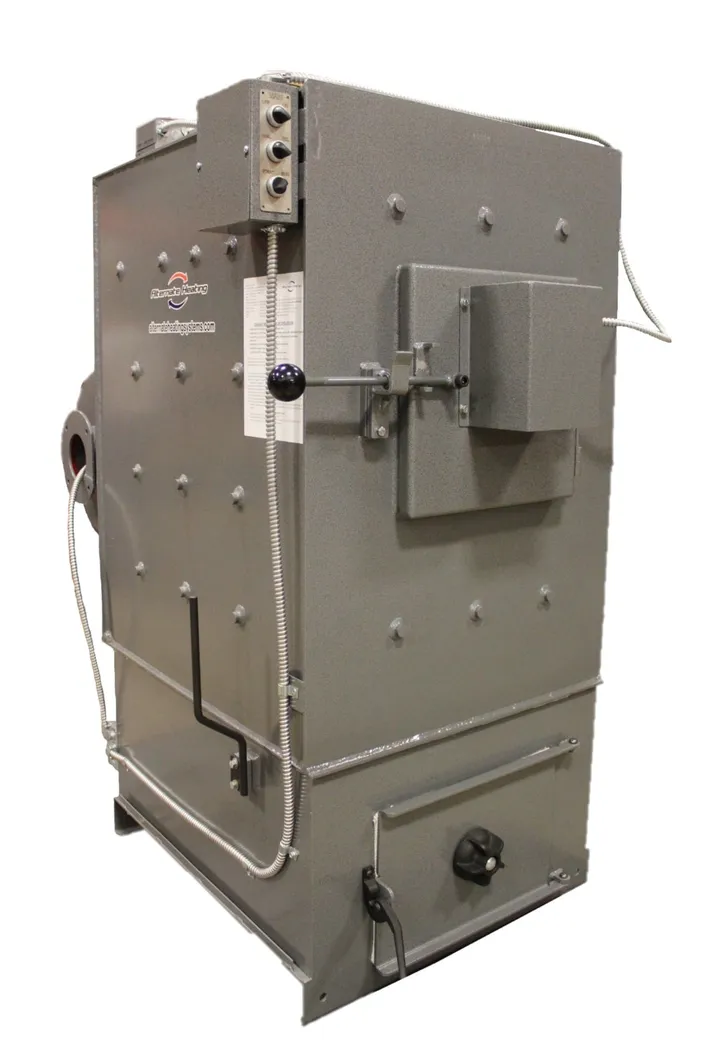

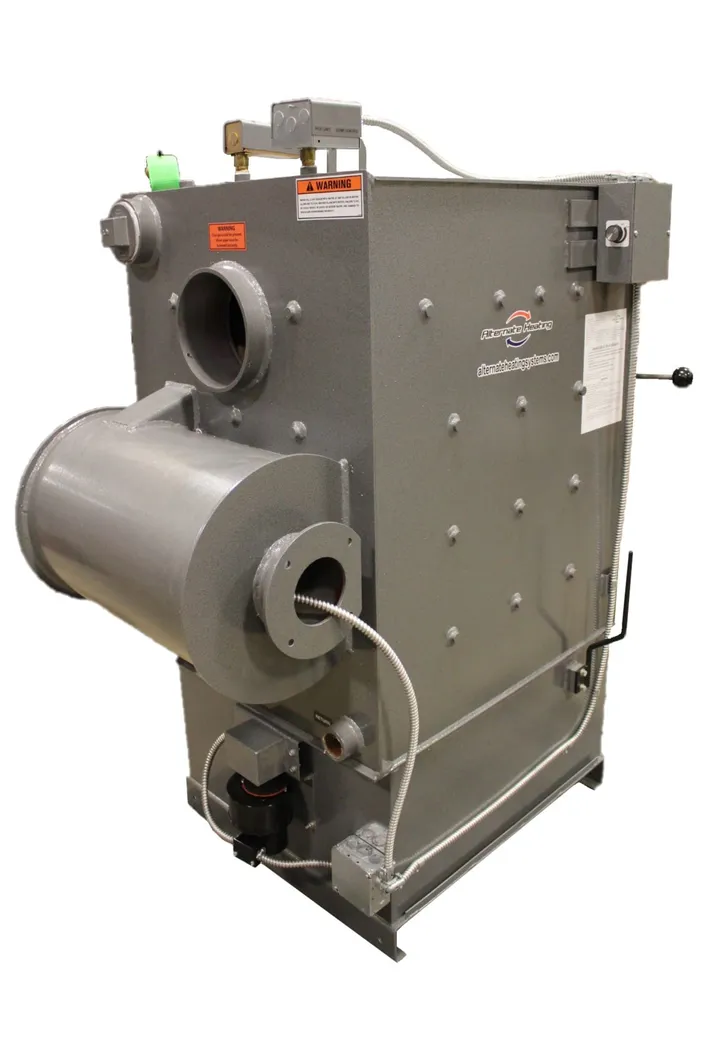

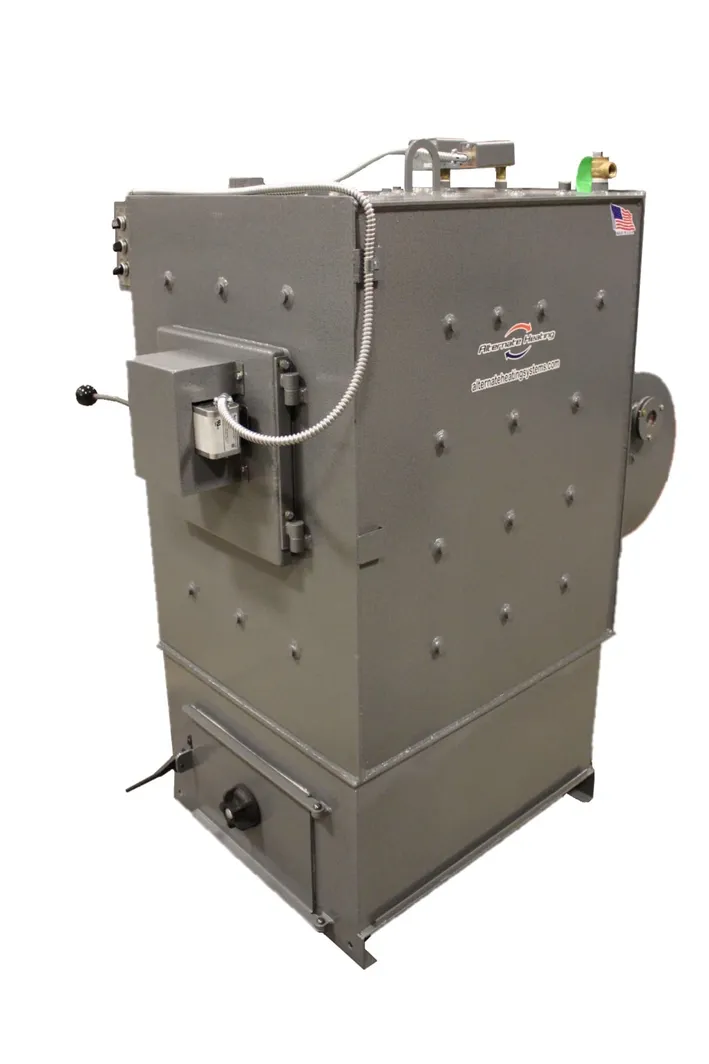

The WOC55 Multi-Fuel Boiler is capable of producing 225,000 BTU/hr and will heat homes ranging from 2,000 to 5,500 sqft. It is a multi-fuel boiler perfect for homeowners looking for a simple, well-made boiler that can burn various fuels. Plus, the WOC55 allows the convenience of liquid backup all in one unit.
All WOC boilers can be upgraded to include an automatic switchover feature to oil if the water temperature drops due to a lack of fire. This option gives you the flexibility and freedom of knowing that your home will not go cold if you, for example, decide to go away for the weekend.
Standard Equipment
The WOC55 Multi-Fuel Boiler comes standard with
- #2 Fuel Oil Burner with Manual Switch-Over
- Legacy Grate System
- Large 14” Loading Door
- Automatic Dual Draft System – Forced Draft Blower and Natural Draft Damper
- Firebrick Lined Firebox
- Water Cooled Baffle (for increased efficiency)
- Hydro Tested to 60PSI
- Constructed of ¼” Steel Plate
- Honeywell Circulator Control Aquastat
- Temperature/Pressure Gauge
- ASME Tested Pressure Relief Valve
- Load Door Smoke Flap
The WOC55 Multi-Fuel Boiler’s cost of ownership is one of the lowest in the industry! $40.00 – $50.00 per year on average!!
Traditionally, Multi-Fuel boilers have been sold as wood/coal combinations; however, due to EPA Phase 2 regulations, these units are no longer sold for continuous use with wood.
To view our Multi-Fuel boilers that do not have an oil burner option. Click here WC55
Please explore our Wood Gun or Coal Gun product lines for automatic feeding boilers.
- Pressurized Vessel
- Flexible Fuel Options
- Oil/Propane/Natural Gas Backup available
- Easy Maintenance
- Cost Effective
- Fuel Efficient
- Lifetime Durability
- None Electric Option
BTU/hr
225,000
BTU/hr Oil or Gas
225,000
Typical Heating Capacity (square ft)
2,000 - 5,500
Weight (lbs)
1,400
Flue Size (in)
8
Fuel Type
Wood*, Hard Coal, Soft Coal
Optional Backup Fuel
Fuel Oil, Propane, NG
Standard Door Opening
14x14
Firebox Capacity (cubic ft)
10
Firebox Length (in)
24
Water Capacity (gal)
59
Width (in)
28
Height (in)
54
Height to Flue Opening (Center) (in)
45
Depth (in)
36
Coal Capacity (lbs)
200
Electric Requirements
110V, 60Hz, 15Amp
Propane/Natural Gas Backup
Fuel oil backup is standard for WOC models but propane or natural gas back up options are available for an additional cost.
Automatic/Manual Switching
For #2 fuel oil, the backup system can function in an automatic switch-over scenario, with fuel oil taking over when the boiler has exhausted its coal fuel. For other fuels, such as natural gas or propane, switch-over is manual only.
Domestic Coil
This Domestic Coil features a 100° F rise at 5 gallons per minute, 50° water inlet temperature and 65 PSI water pressure. It is threaded into a 4 IN NPT threaded fitting provided on the boiler for this purpose.
Insulation Jacket
Our base unit Multi-Fuel boilers have no insulation on the outside of the boiler, allowing maximum heat radiation in the boiler room. If you prefer to circulate more of this heat, an insulation jacket can be added to the boiler. This insulation jacket is comparable to that used on the Wood Gun or Coal Gun boilers
ASME Certification
The ASME Certification guarantees the steel grade and weld quality of the boiler water jacket. Each ASME Certified water jacket has been pressure tested to 60 PSI, and includes a 30 PSI release valve.
Low Water Cutoff
A Low Water Cutoff senses the water level in the boiler’s vessel and will shut the unit down if the water level drops to an unsafe level. Available with automatic reset or manual reset.
