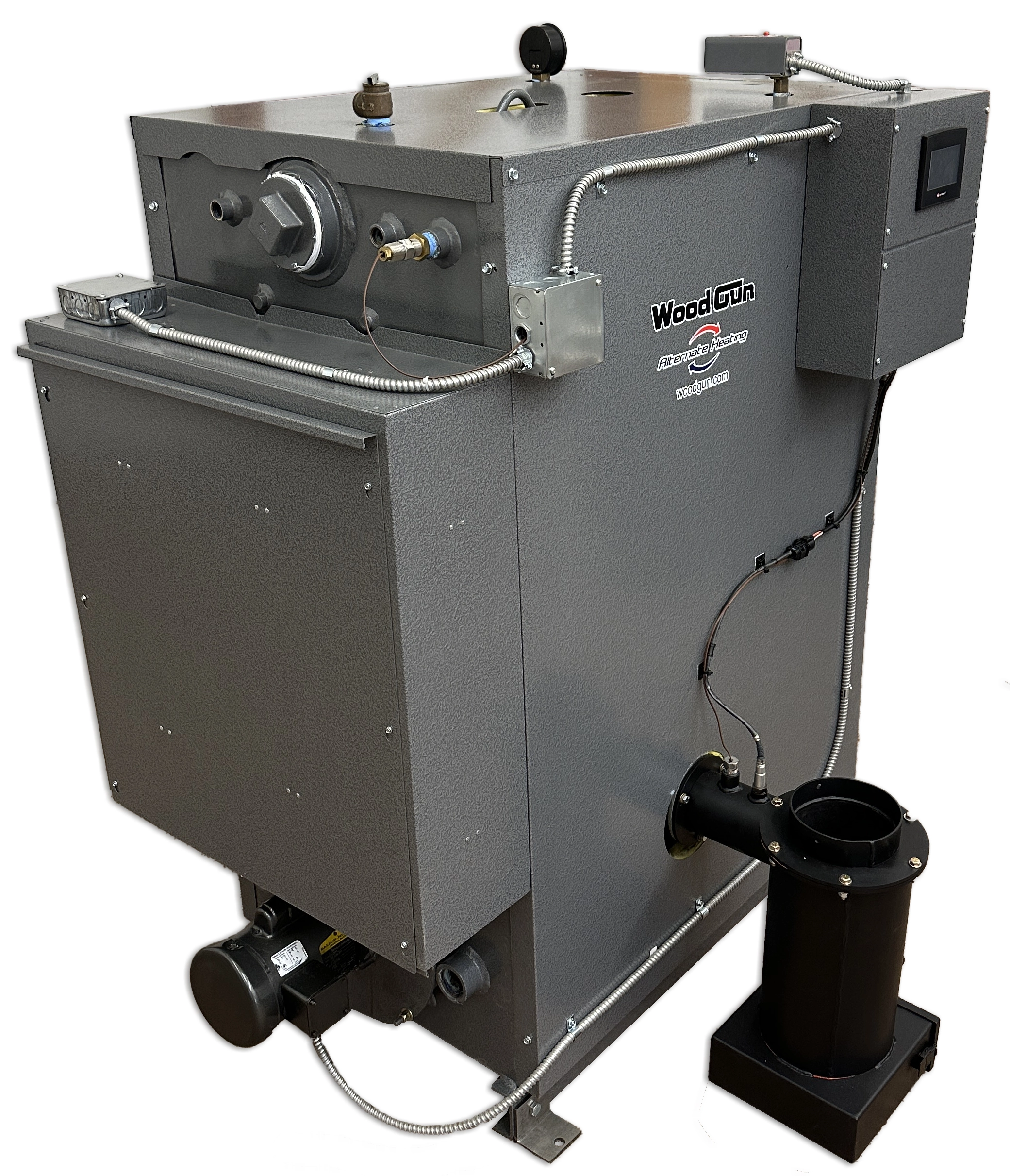

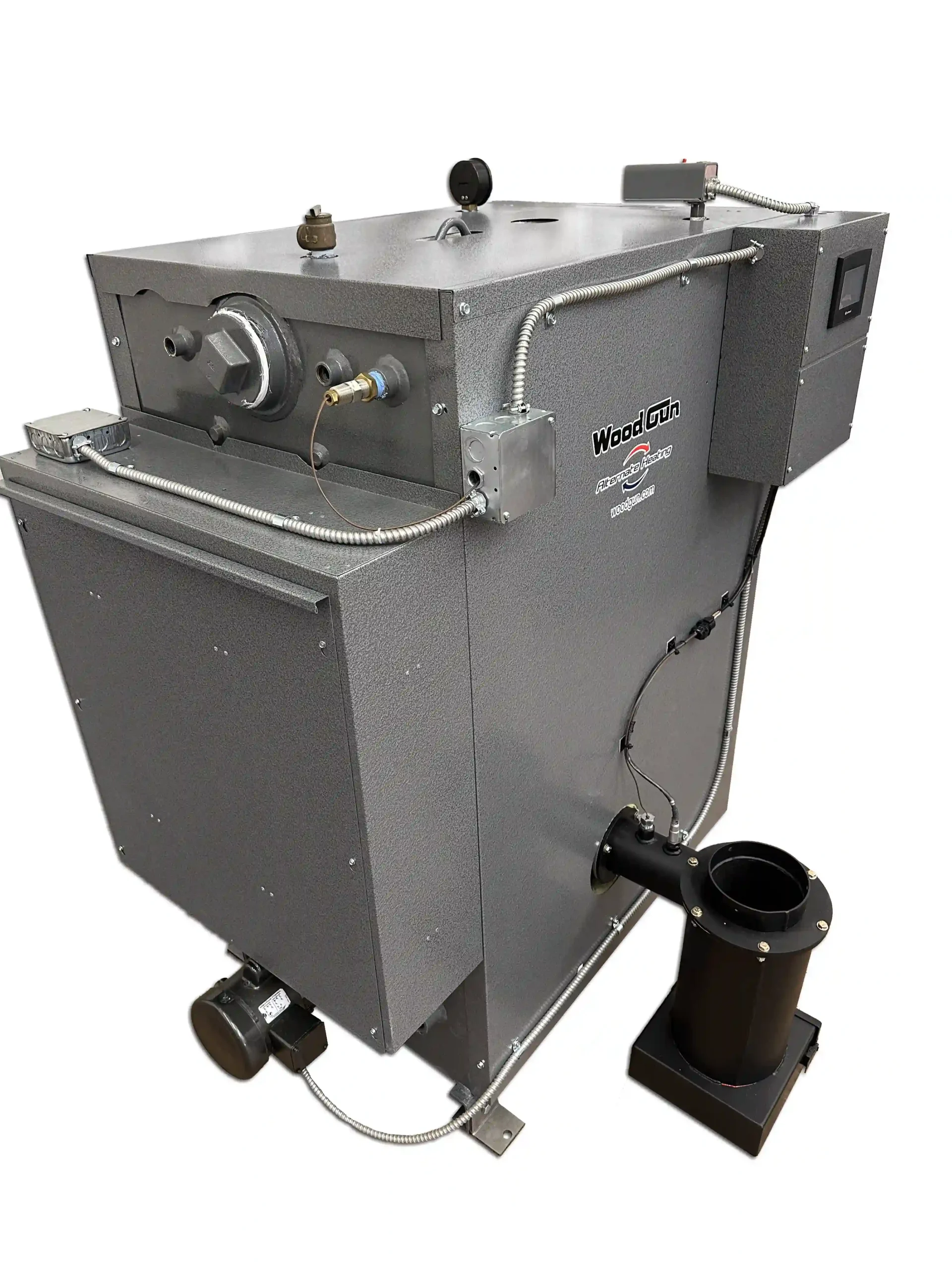

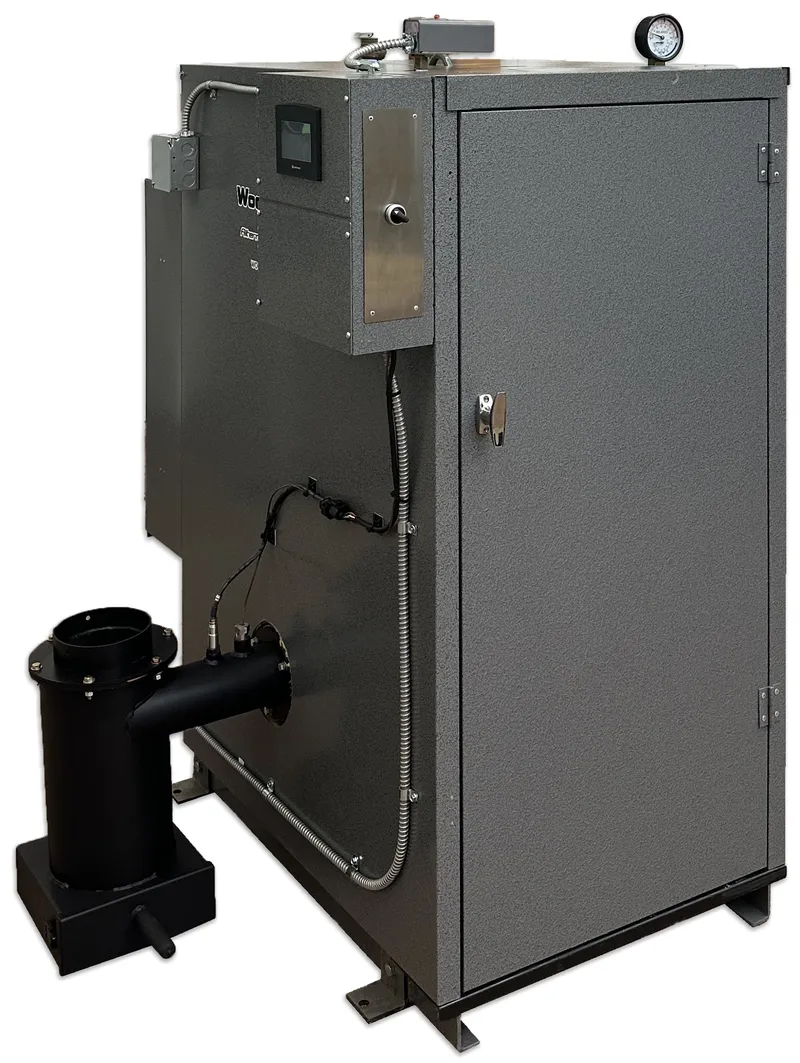

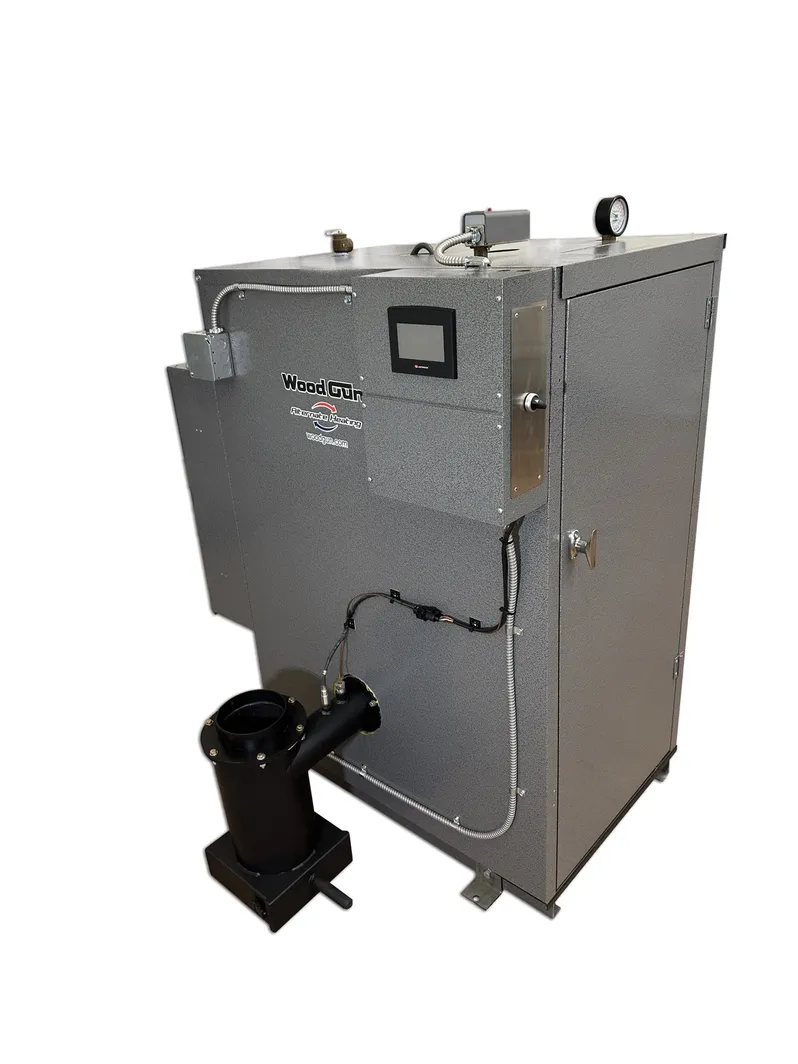

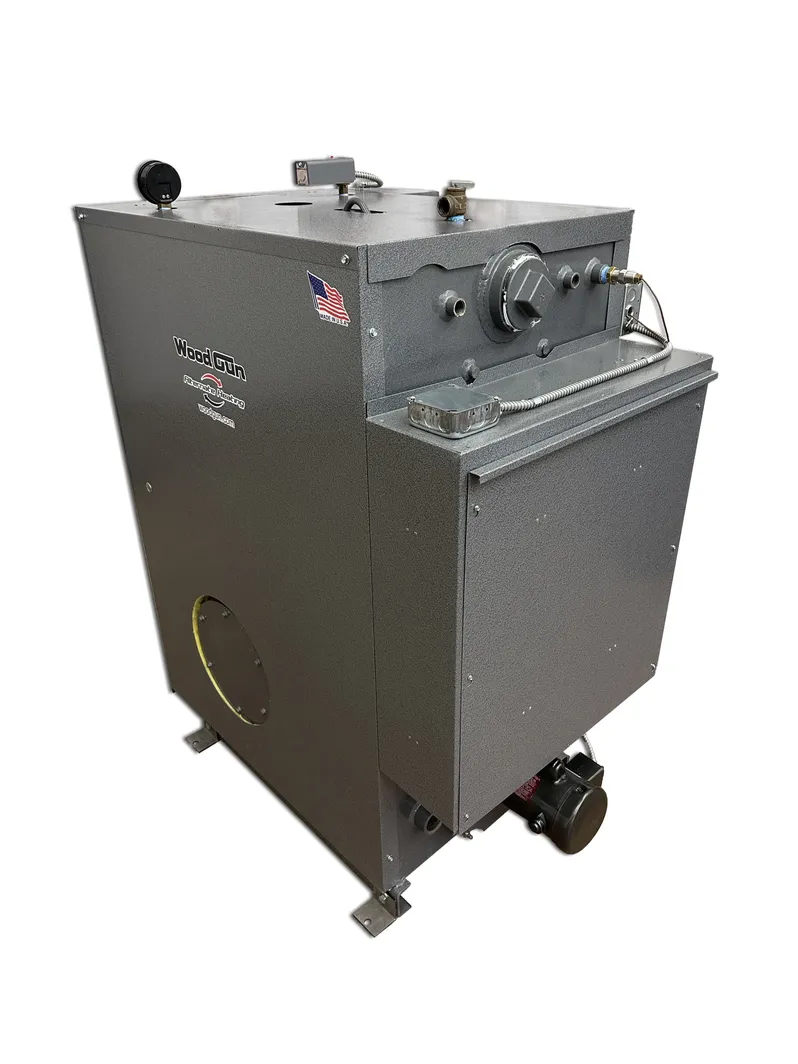

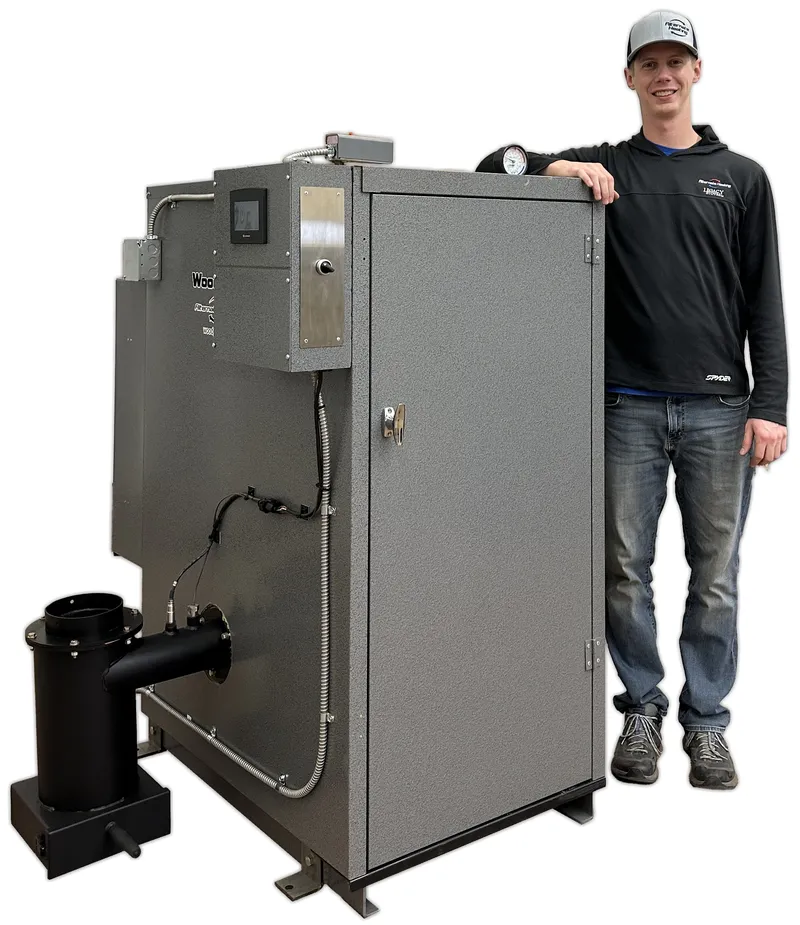

Introducing the all-new Super E110 (SE110)! This is the ideal wood boiler for any home less than 3,000 square feet. With its small footprint and quality design, it is an investment that will last a lifetime! The E110 delivers up to 120,000 BTU/hr efficiently while exceeding all EPA requirements for use as an indoor residential wood boiler. Amazingly the SE110 does NOT require thermal storage tanks*! Its design is based on our tried-and-true E100 model. The SE110 has leading edge technology enhanced with a modified refractory system and a secondary air inlet controlled by air valves regulated by an oxygen sensor. Additionally, this model is UL certified for direct venting to the outside, eliminating the need for a chimney.
For more heating capacity, consider our Super E210 residential wood boiler.
The Super E110 qualifies for at least two tax credit programs.
- The Federal Tax Credit of up to $2,000.
- The Efficiency Maine Rebate of up to another $6,000. (For Maine customers)
The Wood Gun™ wood gasification boiler by Alternate Heating Systems is one of the most efficient wood-burning devices on the market today. This uncompromising multifuel system is ideal for any residential application where conventional log wood is used as fuel.
Our optional Dual Fuel backup is an efficient liquid fuel backup for the Wood Gun SE110 wood-burning boiler that provides reliable heating during periods of low wood supply or extreme weather conditions. It ensures consistent warmth by automatically kicking in when wood is unavailable or unable to be reloaded, minimizing downtime. This system enhances energy security and allows for more flexible fuel sourcing, offering peace of mind and ensuring comfort throughout the heating season.
Industry’s Best Warranty

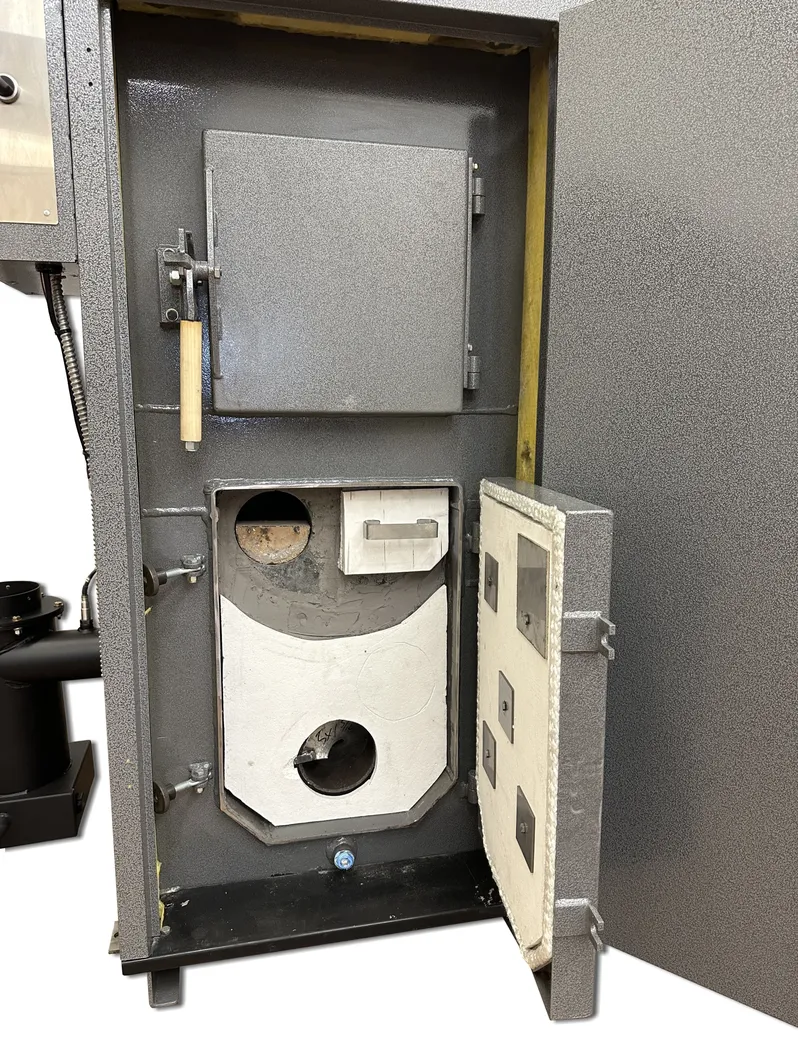

Wood Gun boilers use ¼” thick Type 304 stainless steel in the construction of the firebox, heat exchanger, and door frames. We use Type 304 stainless steel for its unsurpassed quality and longevity. Our stainless-steel boilers show no signs of deterioration, even after well over 35 years of service. This is why we gave our Wood Gun vessels a 20-year warranty, with the first 10 years being completely covered, labor and materials! We stand behind our products and trust our team who builds them!
*Thermal storage refers to a rechargeable heat reservoir that many wood boiler manufacturers require for EPA emissions compliance. Our SE110 exceeds EPA emissions standards without thermal storage, giving customers the option to decide if thermal storage is right for their needs.
The main advantages of not requiring thermal storage include:
- Cost savings: Thermal storage systems can cost thousands of dollars.
- Simpler installation and operation: Without thermal storage, the system is easier to install and operate.
- Space savings: Eliminating thermal storage reduces the overall footprint of the installation.
While thermal storage has its benefits—such as allowing wood boilers to operate with less intervention, lower emissions, and greater efficiency during times of low heating demand. Boilers used with thermal storage tend to produce less firebox condensate and can have a longer lifespan. However, the Wood Gun’s 304 stainless steel firebox and heat exchanger design allows us to offer a 20-year warranty, including coverage for corrosion, regardless of whether you use thermal storage or not.
- Qualifies for up to 30% Tax Credit
- The BEST warranty in the industry
- Meets all EPA requirements
- 1/4″ Stainless Steel Construction
- Very Fuel-Efficient
- Minimal Maintenance
- Water Storage NOT Required
- Made in Pennsylvania
- Optional Dual Fuel Backup
BTU/hr
120,000
Typical Heating Capacity (square ft)
3,000
Weight (lbs)
1,400
Flue Size (in)
6
Fuel Type
Soft, Hard Logwood*
Optional Backup Fuel
Fuel Oil, Propane, Natural Gas
Standard Door Opening (in)
14x14
Firebox Capacity (cubic ft)
6.5
Firebox Dimensions
26" Long X 20" Wide X 20" High
Approximate Water Capacity (gal)
60

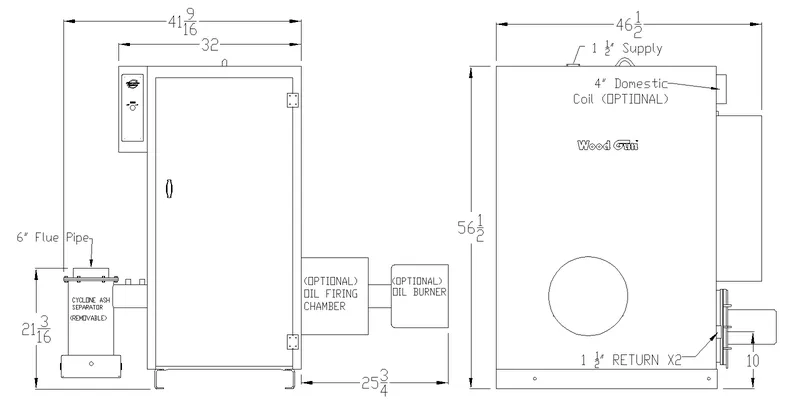

Width (cyclone removed) (in)
28
Height (in)
58
Depth (in)
46
Electric Requirements
110V, 60Hz, 6Amp
Domestic Coil
This Domestic Coil features a 100° F rise at 5 gallons per minute, 50° water inlet temperature, and 65 PSI water pressure. It is threaded into a 4 IN NPT threaded fitting provided on the boiler for this purpose.
Cycle Timer
This feature adds a timer that triggers the boiler to run for 10 minutes every 2 hours, even if there is no call for heat. This maintains an internal temperature above the kindling point, reducing the need to manually relight the unit during periods of low demand.
Smoke Exhaust Hood
The Smoke Exhaust Hood mounts over the loading door, capturing any smoke that may escape during the fuel-loading process. This smoke is then vented directly to the outside through a separate vent. When tolerance for smoke is low, the smoke exhaust hood is essential.
Low Temperature Shutdown
If all the fuel has been consumed in your boiler, the Low Temperature Shutdown Feature will prevent the boiler from attempting to fire. This keeps the draft fan from running which would blow the remaining heat out through the flue.
Oil/Propane/Natural Gas Backup

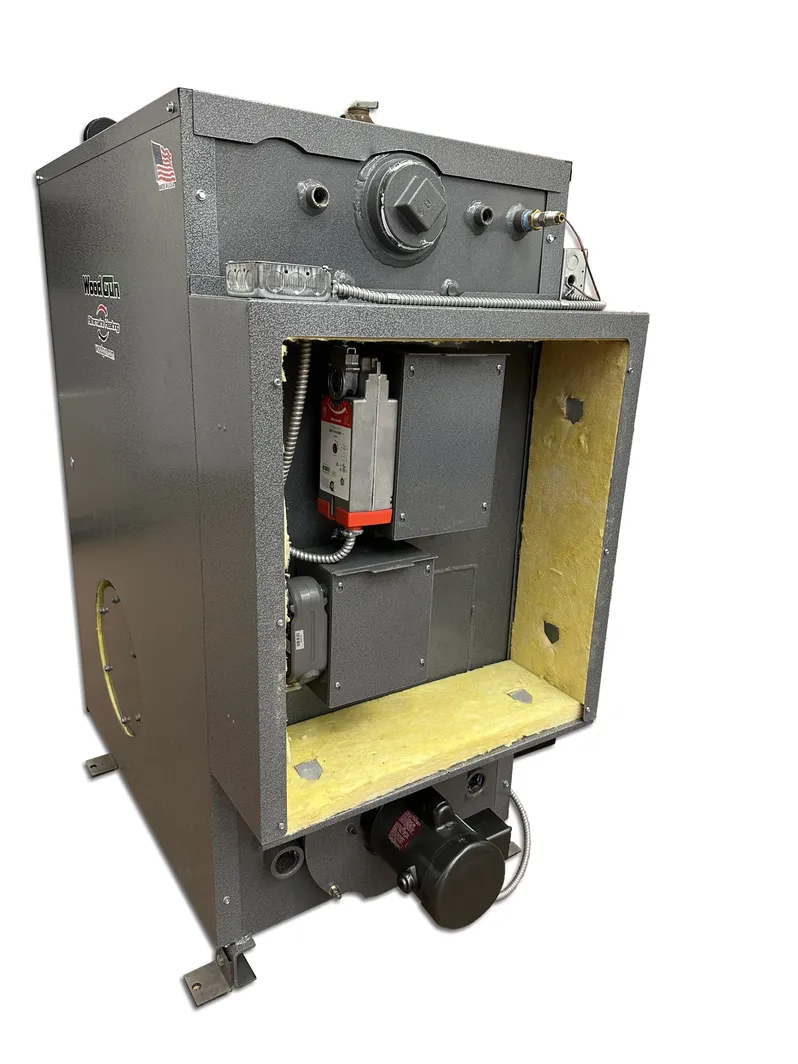

The Wood Gun wood boiler can be fitted with a backup fuel option. This requires a dedicated firing tube that must be built in during manufacturing.
The E100 is capable of producing 80,000 BTU/hr when running on oil, propane, or natural gas.
Automatic/Manual Switching
For #2 fuel oil, the oil backup can function in an automatic switch-over scenario, with fuel oil taking over when the boiler has exhausted its wood fuel. For other fuels, such as natural gas or propane, switch-over is manual only.
Low Water Cutoff
A Low Water Cutoff senses the water level in the boiler’s vessel and will shut the unit down if the water level drops to an unsafe level. Available with automatic reset or manual reset.
ASME Certification
The ASME Certification guarantees the steel grade and weld quality of the boiler water jacket. Each ASME Certified water jacket has been pressure tested to 60 PSI, and includes a 30 PSI release valve.
Custom Engineering
At Alternate Heating Systems we have expert fabricators and engineers ready to tackle any design change! Whether it is a custom bin, moving the cyclone to the other side, an extra load door, water storage tank, or whatever you may need to fit your application.
