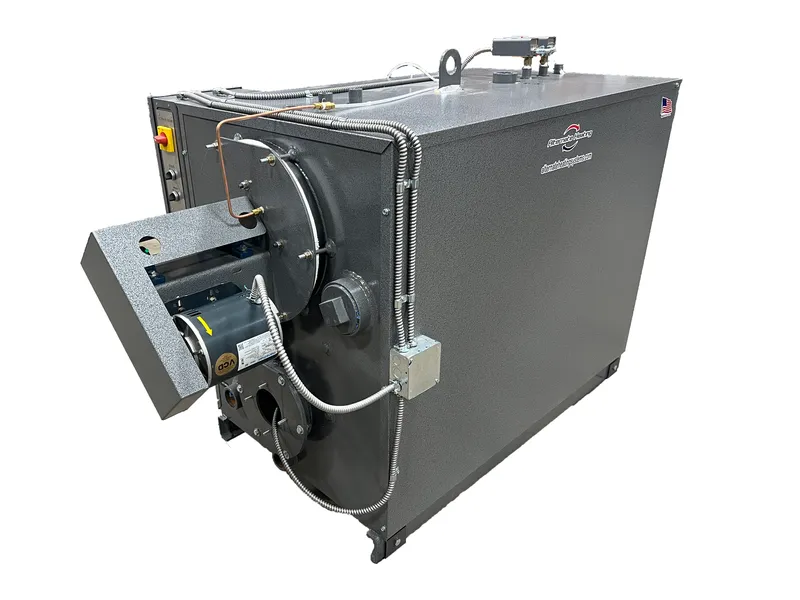

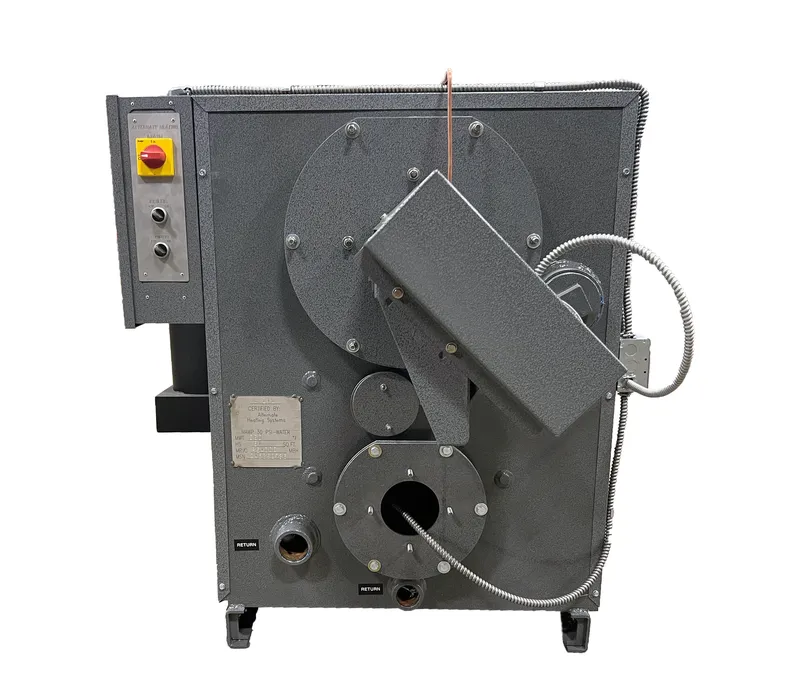

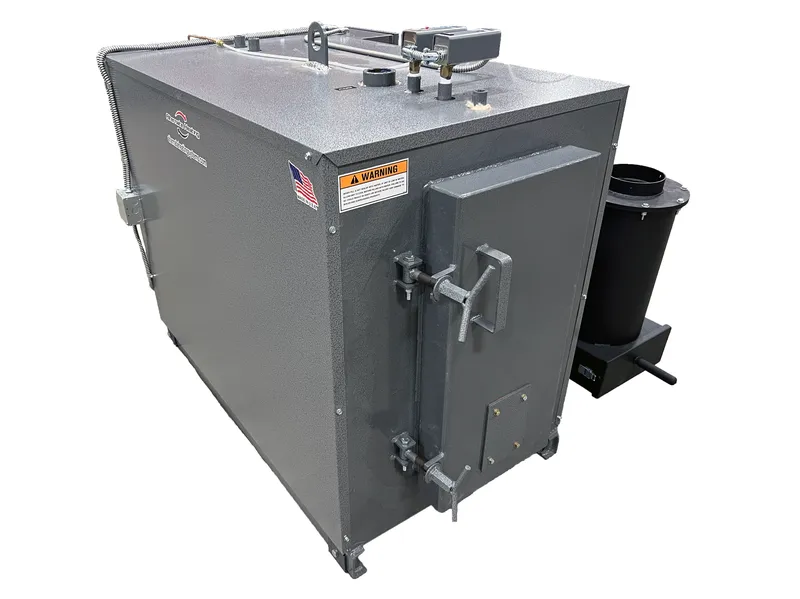

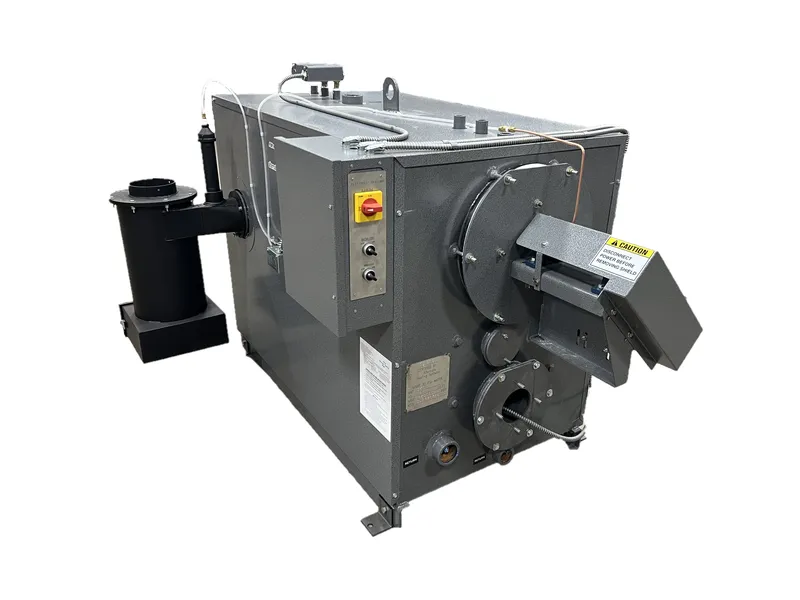

The B300 waste oil boiler offers the most efficient heat exchanger and creates the cleanest burn of our waste oil line. It produces 350,000 btu/hr. It is the ultimate answer to your used oil disposal challenges.
B300 Waste Oil Boiler Features:
- ASME-certified pressurized vessel.
- High-efficient Swirl Chamber Heat Exchanger.
- Domestic water heat exchanger ready.
- Powder coat finish
- A large access door for easy, routine cleaning and maintenance.
- A refractory lined, extra-large combustion chamber for optimal combustion
- The heat exchanger is engineered for optimal efficiency and heat transfer.
- Refractory lining and a Target Plate offer protection and combustion at very high temperatures.
- A draft induction fan allows for more BTU input and a cleaner heat exchanger.
- The induction fan assembly swings out for easy cleaning and maintenance of the heat exchanger.

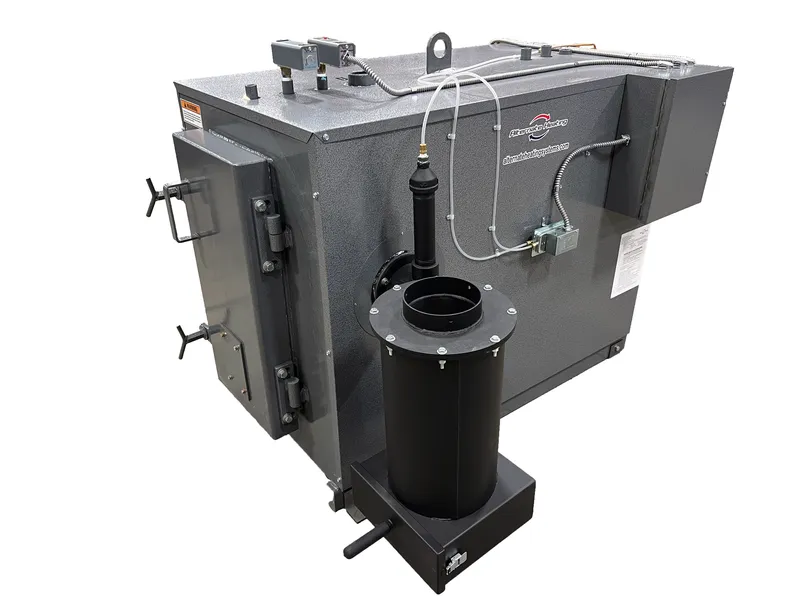

- The Cyclone Ash Separator, combined with the induced draft, maintains self-cleaning action while removing fly ash from the exhaust.
*Burners are sold separately.
- Double Savings
- Swirl Chamber
- Cyclonic Ash Collector
- Prevent Soot Buildup
- Highly Efficient
- Maintenance Friendly
- Built & Designed for Longevity
- Standard ASME Certification
- Made in the USA
Call For Pricing(717) 987-0099
Assembled Specifications
BTU/hr
350,000
Typical Heating Capacity (sqft)
10,000
Weight (lbs)
1,700
Flue Size (in)
6
Fuel Type
Variety of Waste Oil Fuels, Fuel Oil, Propane, NG
Heating Surface (square ft)
61
Nominal Waste Oil GPH
2.5
Water Capacity (gal)
185
Minimum Compressed Air Required (cfm @ 30psi)
10
Electric Requirements
110V, 60Hz, 20A
Width (in)
32
Height (in)
46
Length (in)
60
Supply/Return Tapping (NPT) (in)
1-1/2
