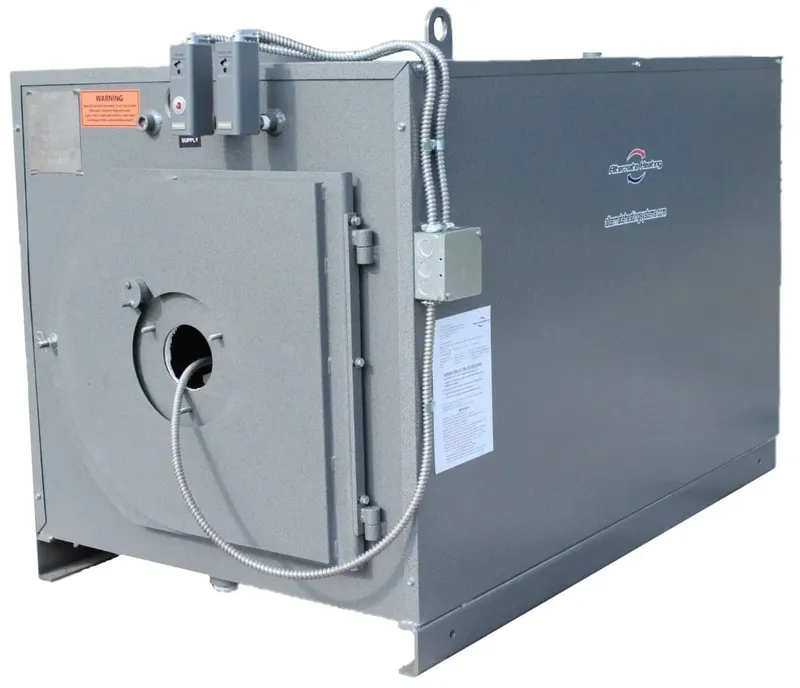

The AHS250 waste oil boiler offers a good balance between quality and cost. It provides state-of-the-art technology without a hefty price tag. This model puts out 200,000 net BTUs, so it’s the smallest of the AHS-Series. Engineered for incredible efficiency, it has excelled over competing brands for over 25 years.
The AHS250 is an efficient, durable waste oil boiler that does not carry a hefty state-of-the-art price tag. The AHS250 is engineered with ease of maintenance and routine cleaning in mind. It is a quality-built alternative to larger, more expensive waste oil systems. It has the lowest upfront cost out of our three waste oil boiler series.
FEATURES OF THE AHS250 Waste Oil Boiler
- Heavy duty construction
- ASME certification
- Easiest to clean Waste Oil Boiler on the market
- Ceramic lining and a Target Plate offer protection and combustion at very high temperatures, keeping the chamber clean from unburned fuel.

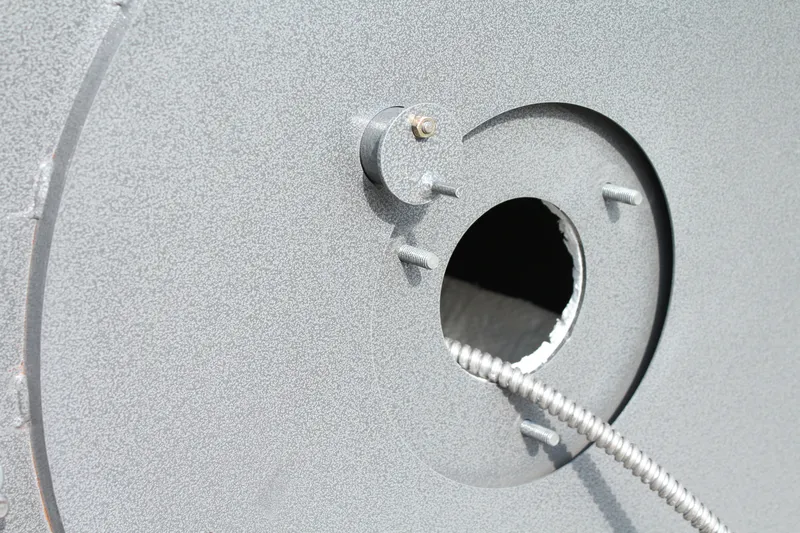

- Access ports for flame viewing

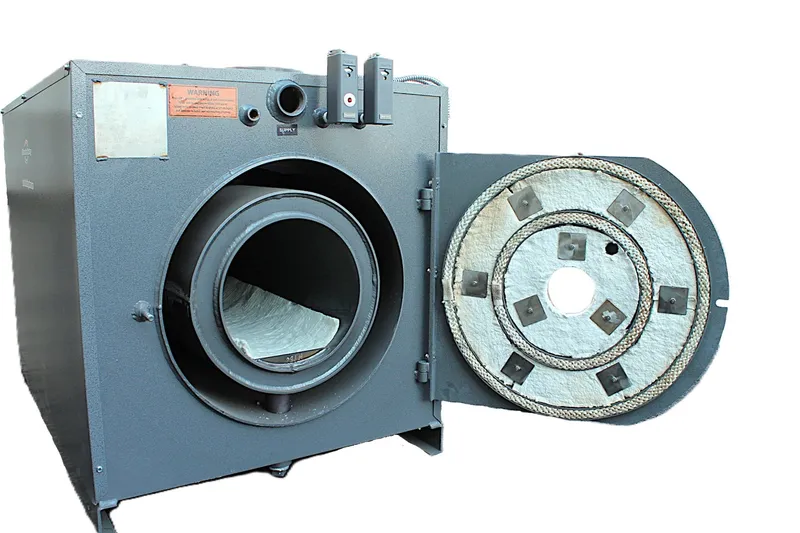

- Large access doors provide easy access to all parts of the boiler for maintenance and cleaning.
Standard Equipment:
- Pre-wired
- Relief Valve

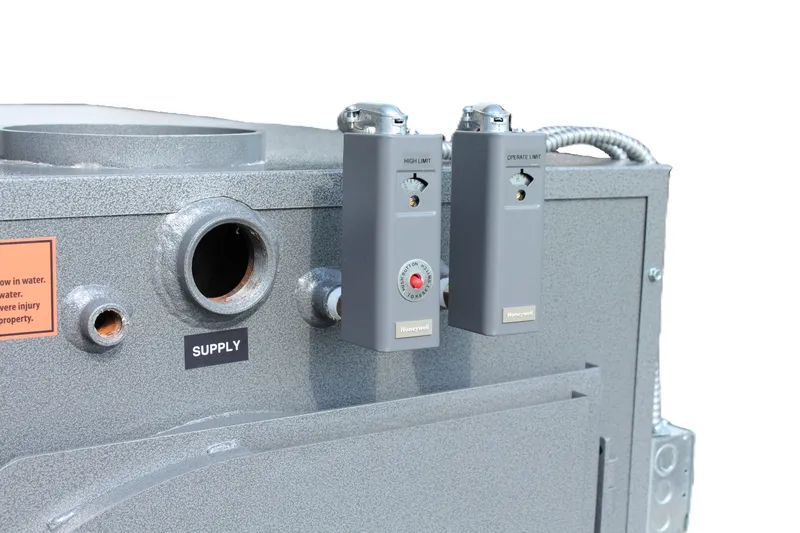

- Pressure Temperature Gauge
- 4” Coil Fitting
- Boiler Conditioner

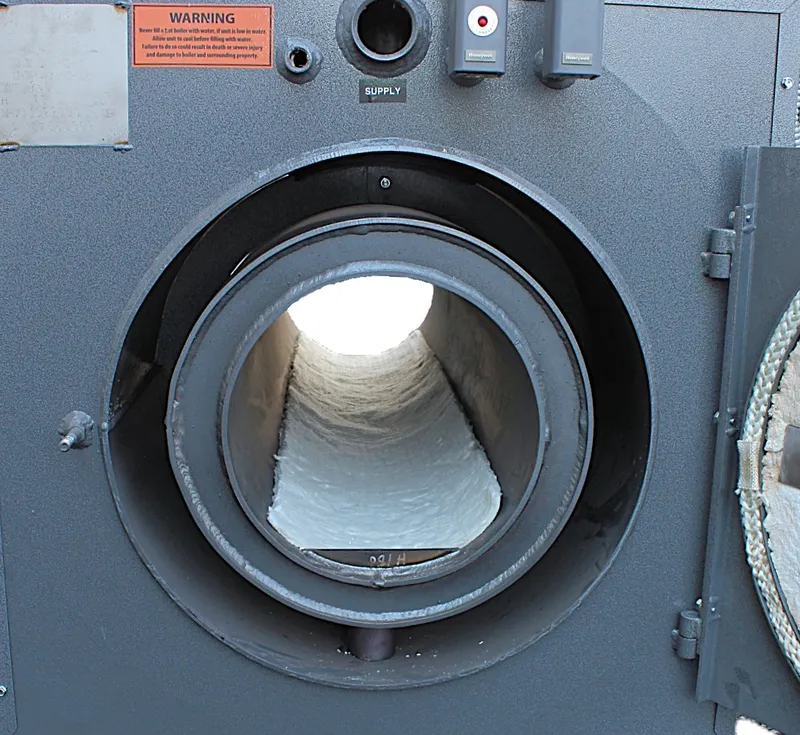

- 2’ Long Ceramic Lined Firing Chamber
- Removable Baffle
*Burner is sold separately.
- Double Savings
- Efficient
- Maintenance Friendly
- Built & Designed for Longevity
- Standard ASME Certification
- Made in the USA
BTU/hr
200,000
Typical Heating Capacity (sqft)
5,000
Weight (lbs)
960
Flue Size (in)
8
Fuel Type
Variety of Waste Oil Fuels, Fuel Oil, Propane, NG
Heating Surface (square ft)
37
Nominal Waste Oil GPH
1.4
Nominal Water Volume (gal)
110
Minimum Compressed Air Required
10 CFM @ 30 PSI
Electric Requirements
110V, 60Hz, 20A
Width (in)
34
Height (in)
41
Length (in)
36
Domestic Coil
This Domestic Coil features a 100° F rise at 5 gallons per minute, 50° water inlet temperature and 65 PSI water pressure. It is threaded into a 4 IN NPT threaded fitting provided on the boiler for this purpose.
Low Water Cutoff
A Low Water Cutoff senses the water level in the boiler’s vessel and will shut the unit down if the water level drops to an unsafe level. Available with automatic reset or manual reset.
