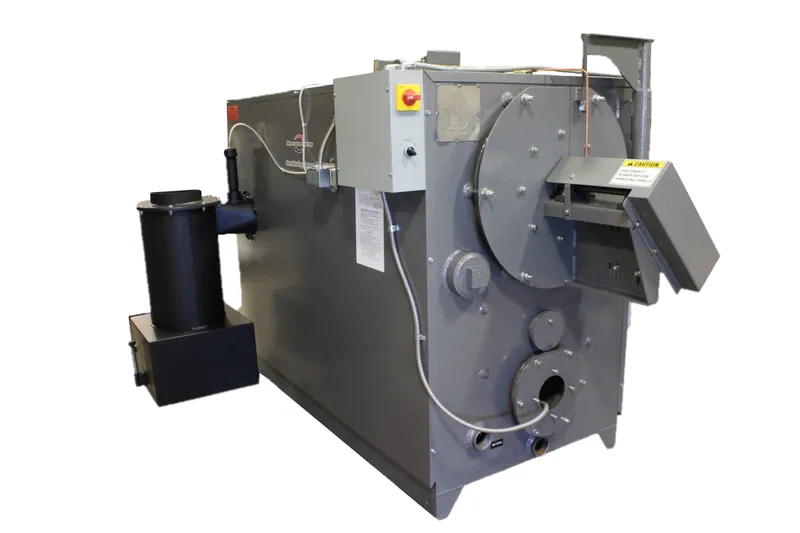

B500M Waste Oil Boiler

Ten Year Warranty

The B500M waste oil boiler produces 750,000 net BTU/hr, making it the ultimate answer to your used oil disposal challenges. It is a modified version of our popular B500 with an upgraded induction fan assembly. This modification allows the boiler to increase the amount of air pulled into the combustion chamber. The excess air enables the boiler to have a larger fire, creating more BTU/hr.

The B500M showcases the potential of all the B-Series waste oil boilers.

We can build a custom machine to meet your unique requirements. Each machine carries a 10-year warranty against defects in materials and workmanship. Dedicated craftsmen build the B500M waste oil boiler in Harrisonville, PA, USA.

Engineered for incredible efficiency, our B500M Waste Oil Boilers are the most state-of-the-art design on the market, excelling over competing brands for over 25 years.

B500M Features:

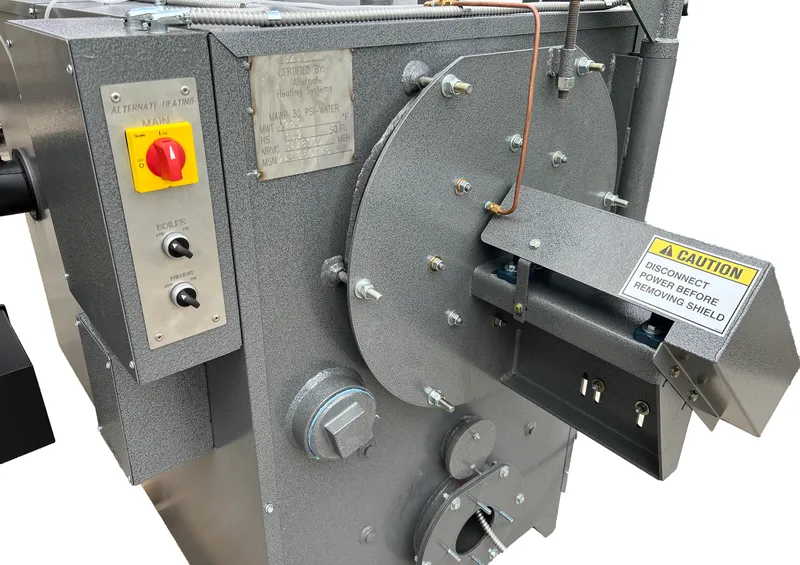

  • Modified Heavy-Duty Induction Fan Assembly
  • ASME-certified pressurized vessel.
  • High-efficient Swirl Chamber Heat Exchanger.
  • Domestic water heat exchanger ready.
  • Powder coat finish
  • A large access door for easy, routine cleaning and maintenance.
  • A refractory lined, extra-large combustion chamber for optimal combustion
  • The heat exchanger is engineered for optimal efficiency and heat transfer.
  • Refractory lining and a Target Plate offer protection and combustion at very high temperatures.
  • A draft induction fan allows for more BTU input and a cleaner heat exchanger.

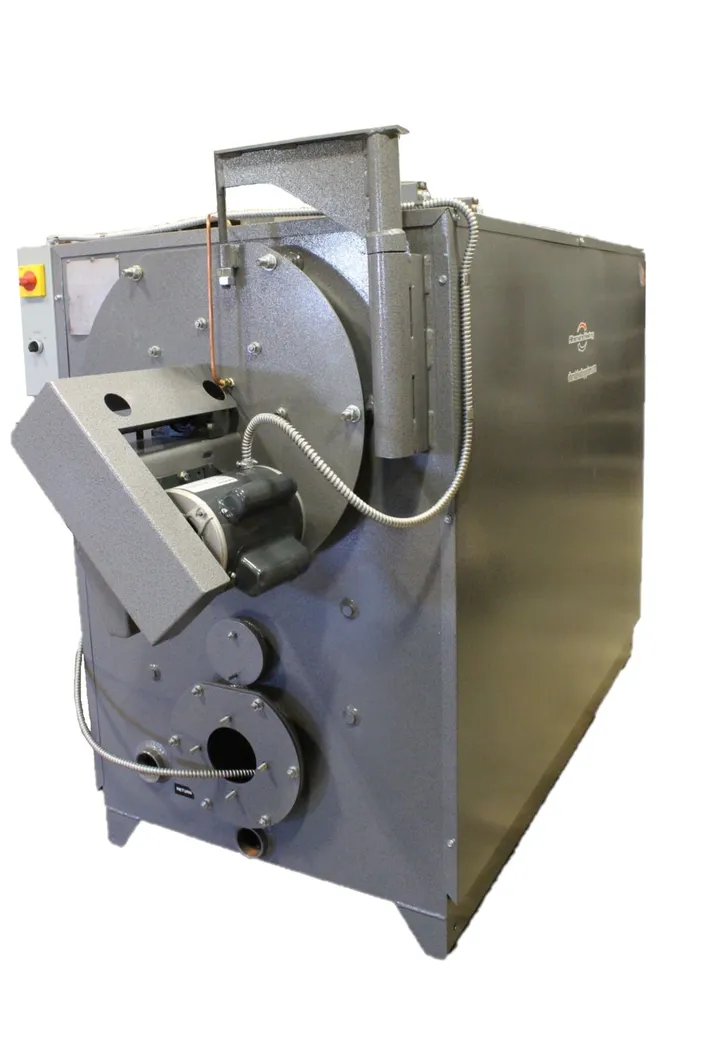

  • The induction fan assembly swings out for easy cleaning and maintenance of the heat exchanger.

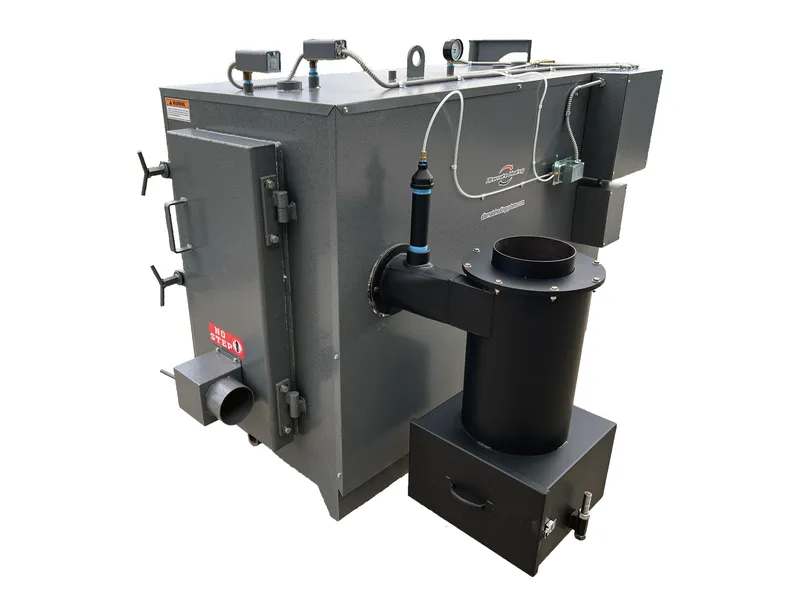

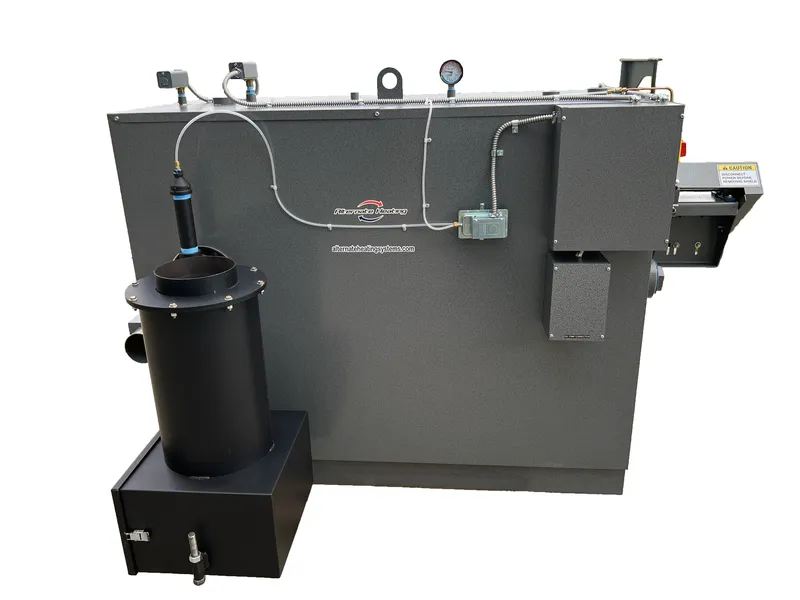

  • The Cyclone Ash Separator, combined with the induced draft, maintains self-cleaning action while removing fly ash from the exhaust.

*Burners are sold separately.

  • Double Savings
  • Swirl Chamber
  • Cyclonic Ash Collector
  • Prevent Soot Buildup
  • Highly Efficient
  • Maintenance Friendly
  • Built & Designed for Longevity
  • Standard ASME Certification
  • Made in the USA
Call For Pricing(717) 987-0099
Assembled Specifications

BTU/hr (Net)


Typical Heating Capacity (sq ft)


Weight (lbs)


Flue Size (in)


Fuel Type

Variety of Waste Oil Fuels, Fuel Oil, Propane, NG

Heating Surface (square ft)


Nominal Waste Oil GPH


Water Capacity (gal)


Minimum Compressed Air Required

10 CFM @ 30 PSI

Electric Requirements

220V, 60Hz, 20A

Length (in)


Width (in)


Height (in)


Supply/Return Tapping (NPT) (in)
